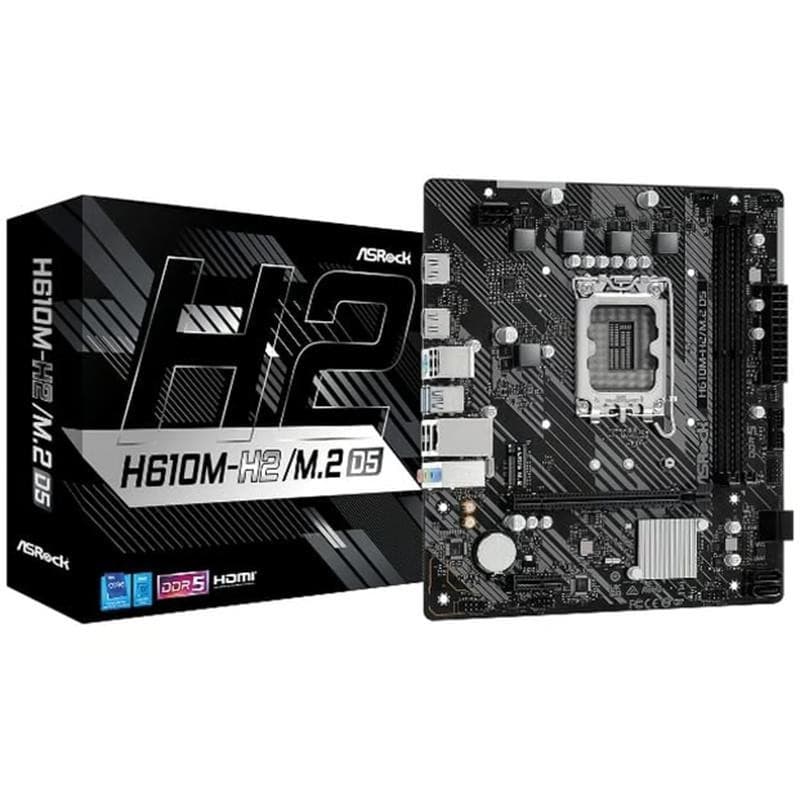

Scheda madre AsRock H610M-H2/M.2 D5 - Supporto processori Intel® Socket 1700 12th e 13th e 14th Gen Intel® Core™ - Ram 2x DDR5 - 2x Hdmi - Usb3.2 / 6x Usb2.0 - GLan - Audio HD - Micro-ATX

Dettagli

Supporta i processori Intel® Core ™ di 14 °, 13 ° GEN e 12 ° GEN (LGA1700)

3+1+1 Power Design

2 x DDR5 dimm

Supporta il doppio canale, fino a 5600*

1 PCIE 4.0 X16, 1 PCIE 3.0 X1

Opzioni di output grafica: 2 HDMI

Realtek ALC897 7.1 CH HD Audio Codec

4 SATA3, 1 Ultra M.2 (PCIE GEN3X4)

4 USB 3.2 Gen1 (2 posteriore, 2 anteriori)

6 USB 2.0 (4 posteriore, 2 anteriori)

Realtek Gigabit Lan

Supporta il programma di installazione del driver automatico Asrock

Unique Feature

Superb Productivity

- Dual Channel DDR5

Rock-Solid Durability

- 3+1+1 Power Phase

EZ Update

- ASRock Auto Driver Installer

CPU

- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

Chipset

- Intel® H610

Memory

- Dual Channel DDR5 Memory Technology

- 2 x DDR5 DIMM Slots

- 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*

- 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*

- Max. capacity of system memory: 96GB

- Supports Intel® Extreme Memory Profile (XMP) 3.0

*Actual support may vary by CPU

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- Intel® Xe Graphics Architecture (Gen 12)

- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s

- Realtek 8111H

Slots

CPU:

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

*Supports NVMe SSD as boot disks

Storage

Chipset:

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*

- 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

USB

- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)

- 6 x USB 2.0 (4 Rear, 2 Front)

*All USB ports support ESD Protection

Connector

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports).

*CPU_FAN1 supports the fan power up to 1A (12W).

**CHA_FAN1/WP supports the fan power up to 2A (24W).

CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port

- 2 x HDMI Ports

- 2 x USB 3.2 Gen1 Type-A Ports

- 4 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x User Manual

- 1 x I/O Shield

- 2 x SATA Data Cables

- 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm

OS

- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
